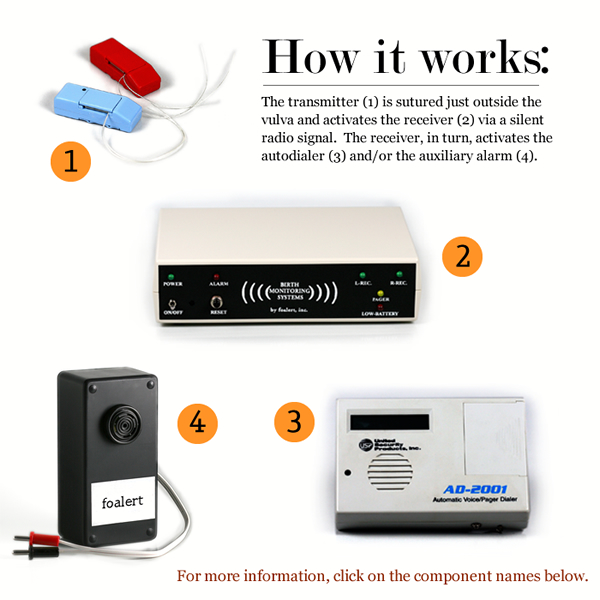

components_overall_B

1 – Transmitter

The transmitter is sutured to just outside the vulva approximately 1-2 weeks prior to the expected due date. The physical separation of the vulva lips pulls the actuating magnet from the transmitter. When this occurs, a silent radio signal is sent to the receiver which then 1) sounds an audible alarm and 2) activates any accessories attached to the receiver. There are two kinds of transmitters, the Multi-Use (blue) and the Single Use (red). The Multi-Use transmitter can be used up to ten (10) times, depending on the length of time that the magnet is out of the transmitter shelf. The Single-Use transmitter is used only once/ then thrown out. Both transmitters work with either the Standard Range or Long Range receiver. You may monitor multiple births simultaneously, provided each expectant mother is wearing a transmitter and is within the tested range of the receiver.

2 – Receiver

When activated, the receiver will

1) sound an audible alarm and

2) activate any attached accessories

We offer both a Long Range and a Standard Range Receiver. Both come equipped with back-up batteries in case of a power failure. The Long Range Receiver has dual antenna ports, allowing for monitoring both stall and paddock areas simultaneously. The practical range is 1000 – 1200 feet.*

The Standard Range Receiver is typically used to monitor stall births. The practical range is 150 – 200 feet.*

*Unobstructed range will be greater.

It is recommended that the receiver be placed as close to the birthing area, with as few barriers between the receiver and transmitter as possible. Barriers, particularly metal, may cause interference, thus reducing the range of transmission. In cases where an attendant is not nearby at all times, it is suggested that an accessory be used with the system.

3 – Autodialer

The Automatic Dialer requires a telephone line in close proximity to the receiver. The dialer can be programmed to call up to 4 telephone and/or pager numbers when activated by the receiver. The dialer will call each number and deliver either a voice or numeric message. This accessory allows for the most freedom of movement for the attendant as there are no distant restraints via the telephone line.

4 – Auxiliary Alarm

The Auxiliary Alarm is hard wired and connected to the receiver. This allows for a second audible alarm to be placed in a stationary location separate from the receiver.
